BURNER MANAGEMENT SYSTEMS

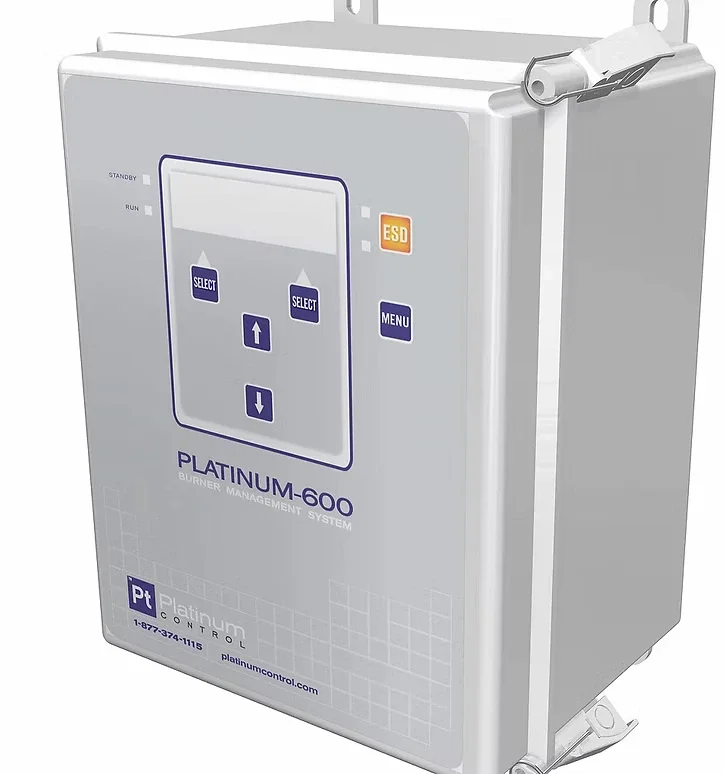

PLATINUM-600 BMS
The Power of One Unit for All Your Equipment
The Platinum Control Platinum-600 Burner Management System (BMS) provides safe, reliable combustion control with unmatched flexibility and savings. The Platinum-600 BMS unit can be rapidly configured to work on any type of fired equipment with the click of a switch.
Platinum Control can help you harness the full potential of your operations with our burner management system, which provide automated burner management, ignition and temperature control. Our BMS systems enable you to record essential data and safely automate heating processes, decreasing injury risk, maximizing uptime and facilitating environmental compliance.
The Benefits of the Power of One
One Unit for Every Piece of Equipment. Four operating modes means the Platinum-600 can be used on flares, heater treaters, line heaters, separators, or any type of fired equipment.
Save Money. One unit for every piece of fired equipment allows you to standardize and avoid purchasing a different model for each equipment type.
Dependable. Platinum-600 units have proven themselves reliable in one of the industry's most competitive and demanding regions.
Reduced Emissions. Significantly reduce the chance of an unlit pilot flame releasing raw gas to the atmosphere, reducing the risk of fires, compliance actions, and super-emitter events.
Flexibility. The Platinum-600 BMS can be moved from one piece of equipment to another and reconfigured with the click of a switch.
One Set of Parts. One unit means one set of parts, no need to keep multiple components in stock.
Improved Safety Profile. The Platinum-600 provides reliable re-ignition and reduced risk of unplanned events.
ONE Burner Management
System, Many Applications
Flares
Line heaters
Combustors
Treaters
Separators
Tank heaters
Heater-treaters
Production units and more
Features and Specifications
The system has the ability to operate four different modes of application: Flare, Flare Plus, Igniter and BMS.
Use the system to monitor and control up to two temperature set points.
A USB port enables you to capture important data to a memory stick.
4 operator mode preset specifications.
Temperature control up to 2 thermocouples.
Very low power consumption.
Built-in charge controller for solar line power with battery backup applications.
Time and date stamped event record log.
USB port to capture internal data.
Automatic restart after a power failure.
Mix and match solenoid drivers.
Selectable status output.
Optional Thermocouple Input for flame detection.
Internal watchdog system.
Ultra-friendly menu and operation.
Ultra bright LED status indicator.
Password protection secures interface from tampering.
Optional Add On: Modbus card for communication.
Optional Add On: 4-20 Inputs & Outputs card.
Certifications
Every Platinum Control Burner Management System unit is CSA/UL Certified for its intended use.
The Platinum-600 BMS is manufactured in a state-of-the-art ISO 9001:2008, CSA/UL compliant facility with the best quality assurance in the industry. We use only the highest-rated component parts, so you're guaranteed to receive a superior, functioning product and exceptional service with every order.
UL372
UL1998
CSA C22.2 No.147
CAN/CSA E60730-1 (Annex H)
ANSI Z21.20-2014
UL873
CSA C22.2 No-0
CSA C22.2 No.199-2007 / Z21.20-2007
CAN/CSA C22.2 No.60730-2-5:2014
NFPA 87 Standards
SPECIFICATIONS
MODEL TYPES
GAS SERVICE TYPE
Natural gas or propane
SPECIFICATIONS TABLE
TEMPERATURE RATING
-40°F to 131°F
-40°C to 55°C
BATTERY (OPTIONAL)
12V sealed lead-acid. Main enclosure will house up to 14AH battery.
OPERATIONAL MODES
Flare: ignition control
Flare+: ignition control & pilot shutdown control
Igniter: ignition control up to 3 selected control
BMS: ignition control up to 3 selected control and up to 2 temperature control
MAX # IGNITION ATTEMPTS
Flare & Flare+: infinite, as needed, Igniter & BMS: 3 strike, shutdown
TEMPERATURE DEVICE
Up to 2 type-K thermocouples
SOLENOID DRIVERS (12/24V)
Single coil, Dual coil latching, Pilot & Main
POWER REQUIREMENTS (12/24V)
0.20W (Unit operating in flame mode, run switch, no solenoids)
STATUS OUTPUT
Programmable – running, pilot or ESD
CERTIFICATIONS
CSA, UL, ANSI, CAN/CSA

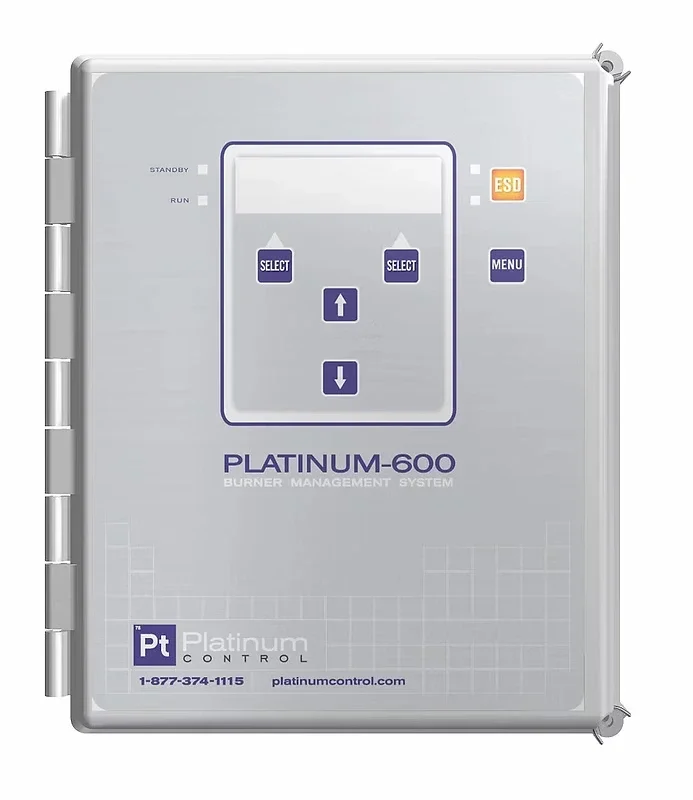

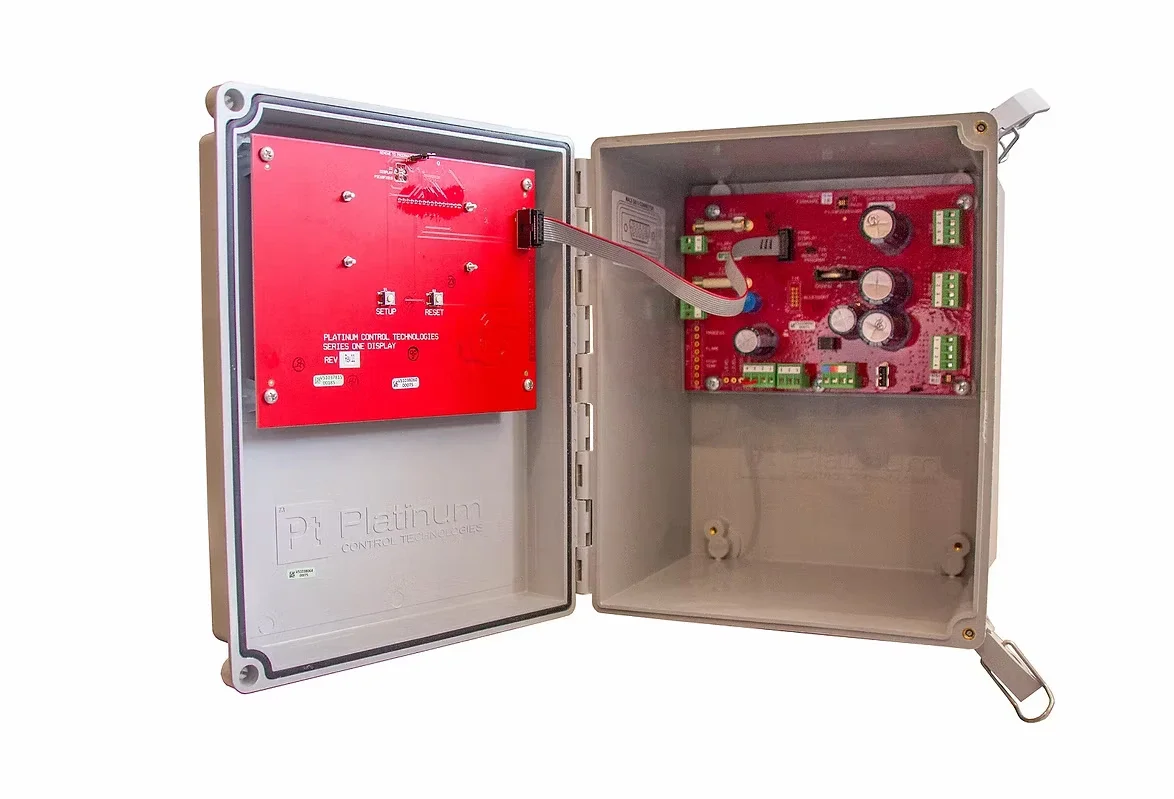

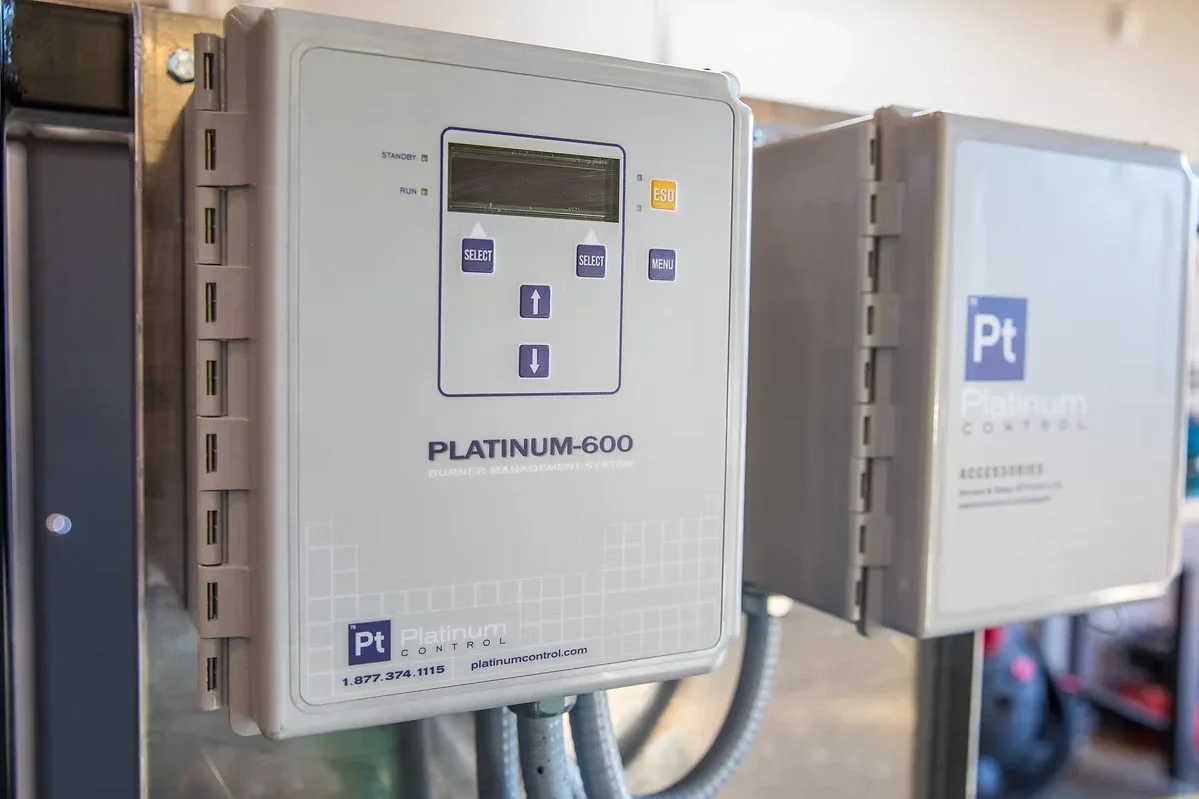

Product Gallery
