BURNER MANAGEMENT SYSTEMS
COMPACT QUICK CONNECT UNIT
Platinum Quality at an Affordable Price Point

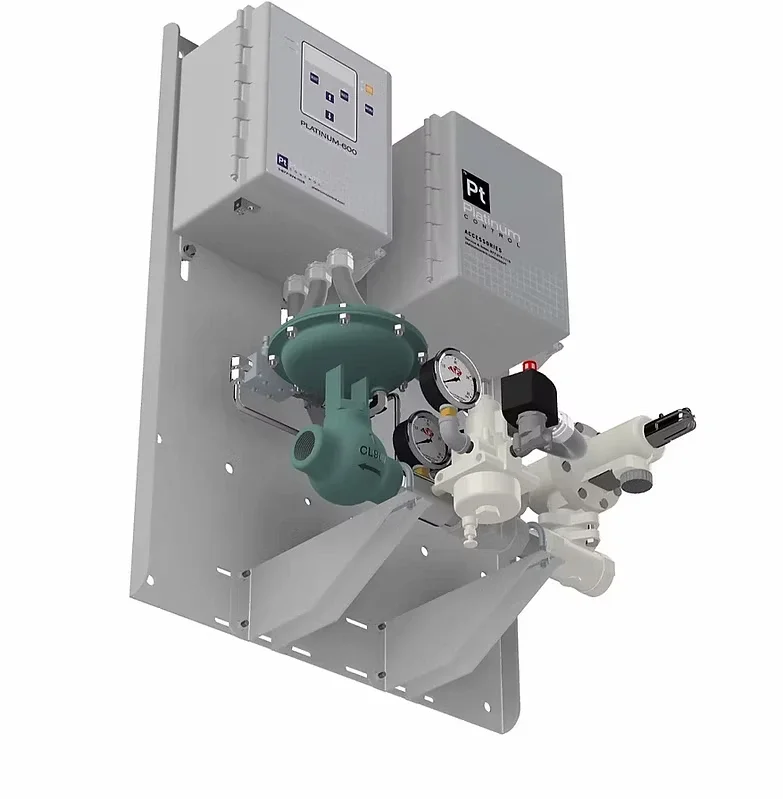

A new slimmed down version of Platinum Control's Quick Connect Unit, the Compact QCU comes standard with a Platinum BMS unit, fuel train and mount.
The Compact QCU not only cuts down on installation time but also offers a lower price point than the standard QCU. Although extremely small in footprint, the compact fuel train provides all the safety features required for safe and reliable operation of natural draft burners (ESD solenoid, soft start, adjustable pressures).
Extremely flexible in design, the Compact QCU has multiple load-out options enabling you to customize a unit that works best for your operations.
Benefits
Dependable critical control processes
Reliable re-ignition
Reduced risk of unplanned emissions events
Improved safety profile
Reduced emissions
Features and Specifications
All-in-one, ready to install unit.
Includes a BMS, fuel train, mounting bracket and optional solar.
Pre-wired components make for an easy, no hassle installation.
Fully tested for connections and leaks.
SPECIFICATIONS
BMS MODELS
Platinum-600, Platinum-600M, Platinum-600MA
STAND
Mounting Bracket
FUEL TRAIN PACKAGES
Basic: Includes basic components for pneumatic fuel train: solenoids (2 x ½"), 1" pneumatic valve, regulators and gauges, extra enclosure for Ignition Module.
Options: ESD solenoid, Ball valves, NACE compliant components, Thermocouples, Thermowells
PILOT ASSEMBLY
North Package, South Package

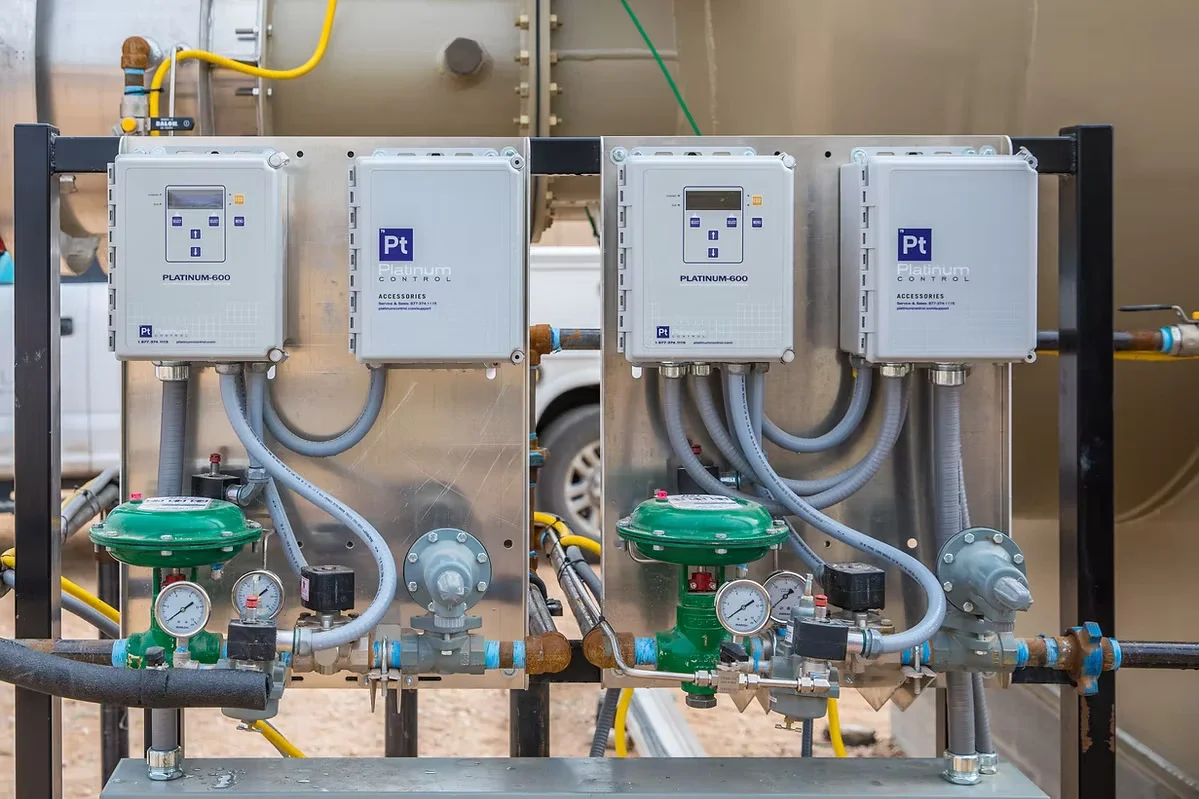

Product Gallery
